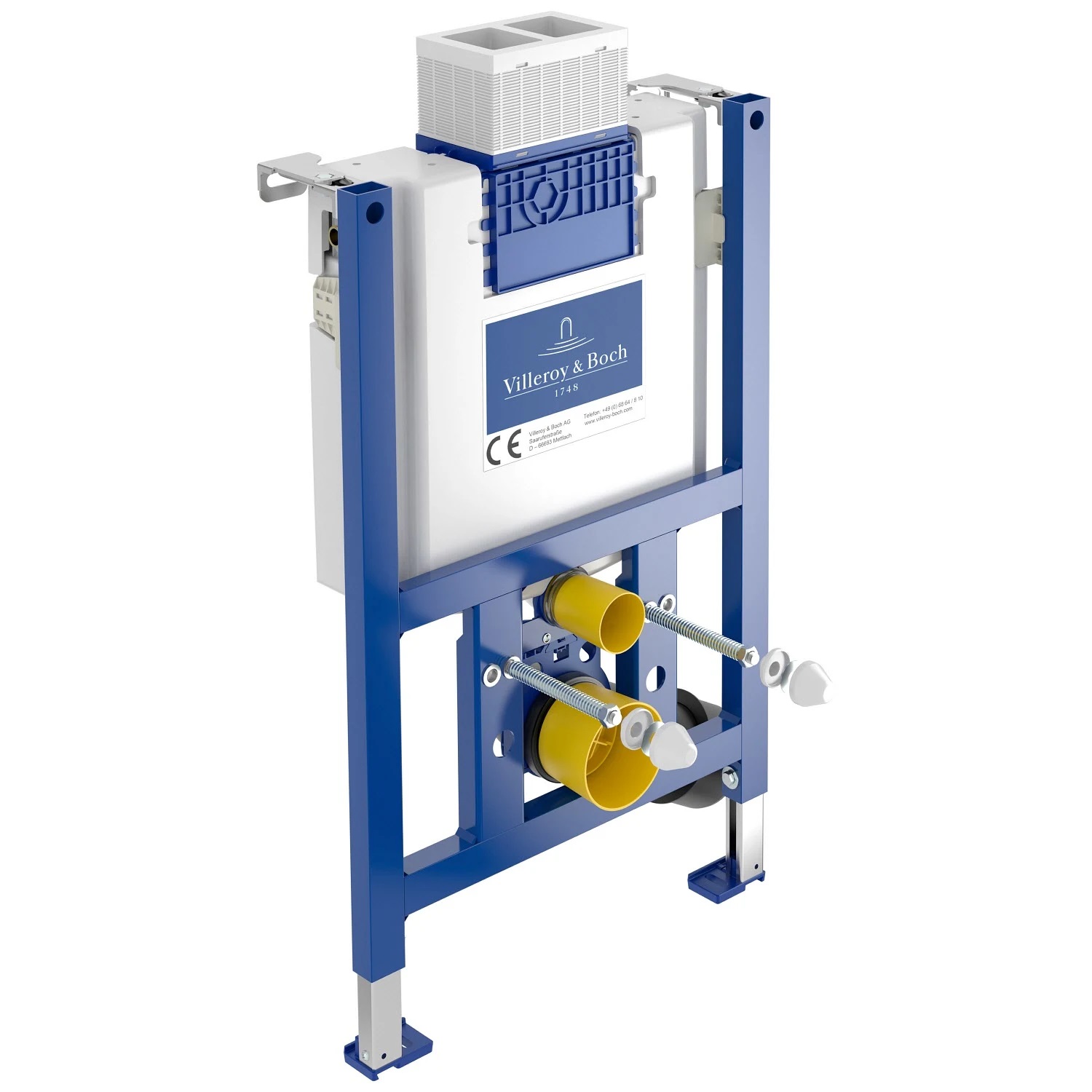

Viconnect for dry-wall construction, Compact, for Dry-wall construction, 635 x 1120 x 90 mm

635 x 1120 x 90 mm
self-supporting powder-coated steel frame, fully pre-assembled

for wall-mounted WC, for covering with plasterboard, installation onto a solid brick wall, in dry-wall constructions etc., Easy connection to flush plate via flexible cables with bayonet joint, adjustment
range of feet from unfinished floor level to upper edge of finished floor level: 0-200 mm, adjustment range front to wall: min 90 mm, with cistern 80 mm, 6-point fastening, concealed cistern
with insulation against condensation with dual flush 3/6 l, adjustable to 3/4,5 l, maximal flush quantity 7.5 l, filling valve Noise Class I, flexible hose for filling valve, can be tightened by hand, angle
valve connection set G1/2, protection box for access opening can be cut to size, WC connecting bend 90° DN 90 Ø 90 / with reducing sleeve DN 90 Ø 90 / DN 110 Ø 110 with protection
cap, complete WC connection set DN 90 Ø 90 / 180 mm, certification marks for concealed cistern: Noise Class I, with wall brackets, incl. feet and fastenings, 2 times M12 WC retaining bolts
adjustable to 180mm with protection plugs and nuts, installation instructions, fastening materials, without flush plate, individual packaging materials

CISTERN
